Software
pfSense Plus
Format
Rack

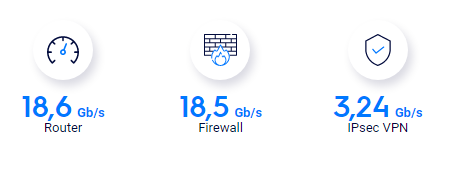

L3 forwarding
• IMIX Traffic:
11,76 Gb/s
• IPERF3 Traffic: 18,60 Gb/s
Firewall
• IMIX Traffic:
5,1 Gb/s (10k ACLs)
• IPERF3 Traffic: 18,55 Gb/s (10k ACLs)
IPsec VPN
• IMIX Traffic:
810 Mb/s (AES-GCM-128 w/QAT)
• IPERF3 Traffic: 3,24 Gb/s (AES-GCM-128 w/QAT)

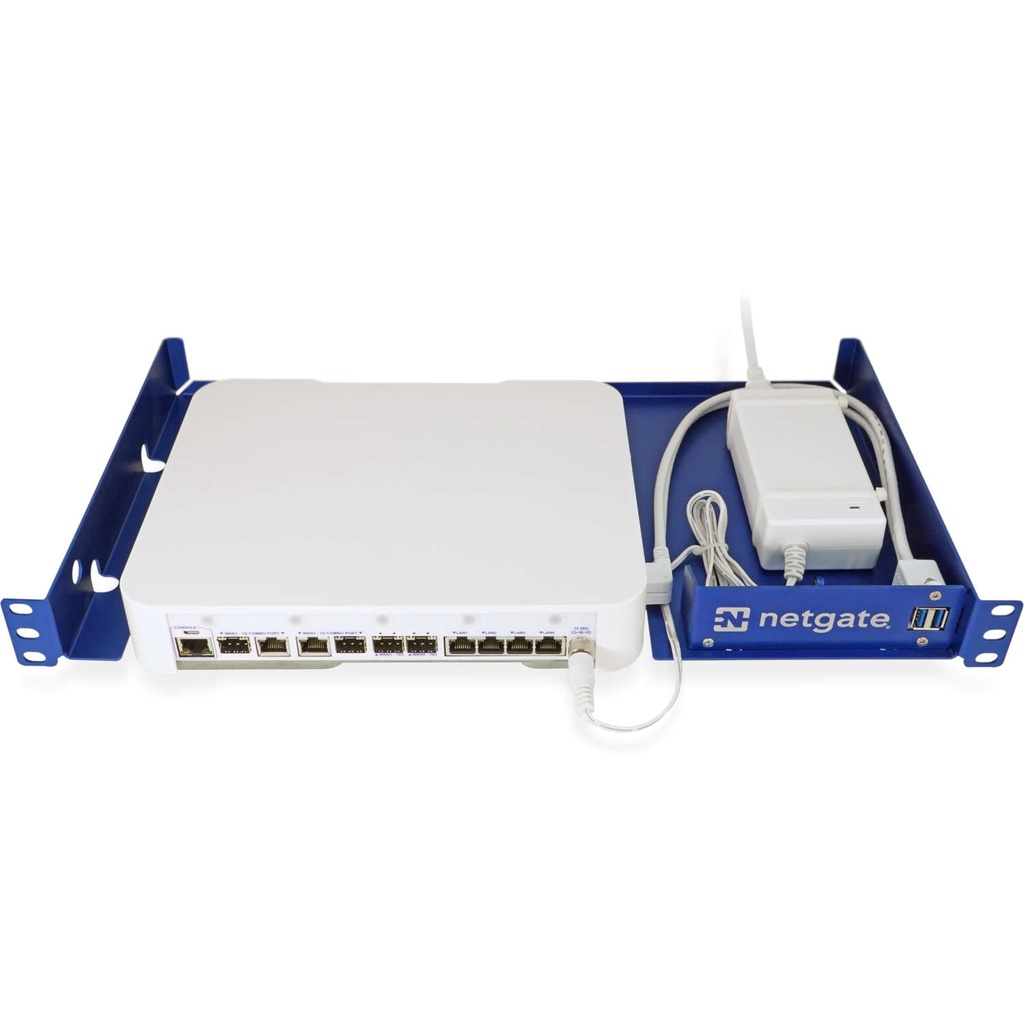

Chassis
1U Rack -
Aluminum, plastic, and steel enclosure
• 19 x 10 x 1.75 inches
• 482.6 x 254 x 44.45 mm
CPU
• Intel Atom
C3758R with QAT, 8-core @ 2.4 GHz (Denverton family)
Réseau
• 2x 10 Gbps
SFP+ WAN ports
• 2x Auto media detect 1 Gbps (RJ45 copper / SFP fiber) combo WAN ports
• 4x 2.5 Gbps RJ-45 "direct" (unswitched) ethernet (LAN) Intel i226
ports
Stockage
128 GB NVMe M.2
SSD (B+M Key)
Mémoire
16 GB DDR4
w/o ECC, single channel (soldered down)
Extension
• 1x Mini-PCie
Slot (Wi-Fi Only)
• 2x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB
3.0)
Port console
1 x auto-detect
console port: "Cisco pinout" RJ45 + micro-USB (micro-USB cable
included with each system)
USB Port
2x USB 3.0 jacks
(USB-A female) Located on right side rear / lead out to right side front
panel of 1U rack
LED
3x 4-color LEDs
(RGB + amber) Software / bootloader controllable via Microchip MCU
Refroidissement
Active -
integrated quiet chassis fan with onboard control
Alimentation
External ITE P/S
AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.
Température de fonctionnement
0°C (32°F) to 40°C (104°F) - ambient
Certifications
FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA
